Sleep comfort, right where you sleep.

A quieter way to shape your split-AC routine, designed around the room you are actually in.

See how it mounts Explore ACBOSS

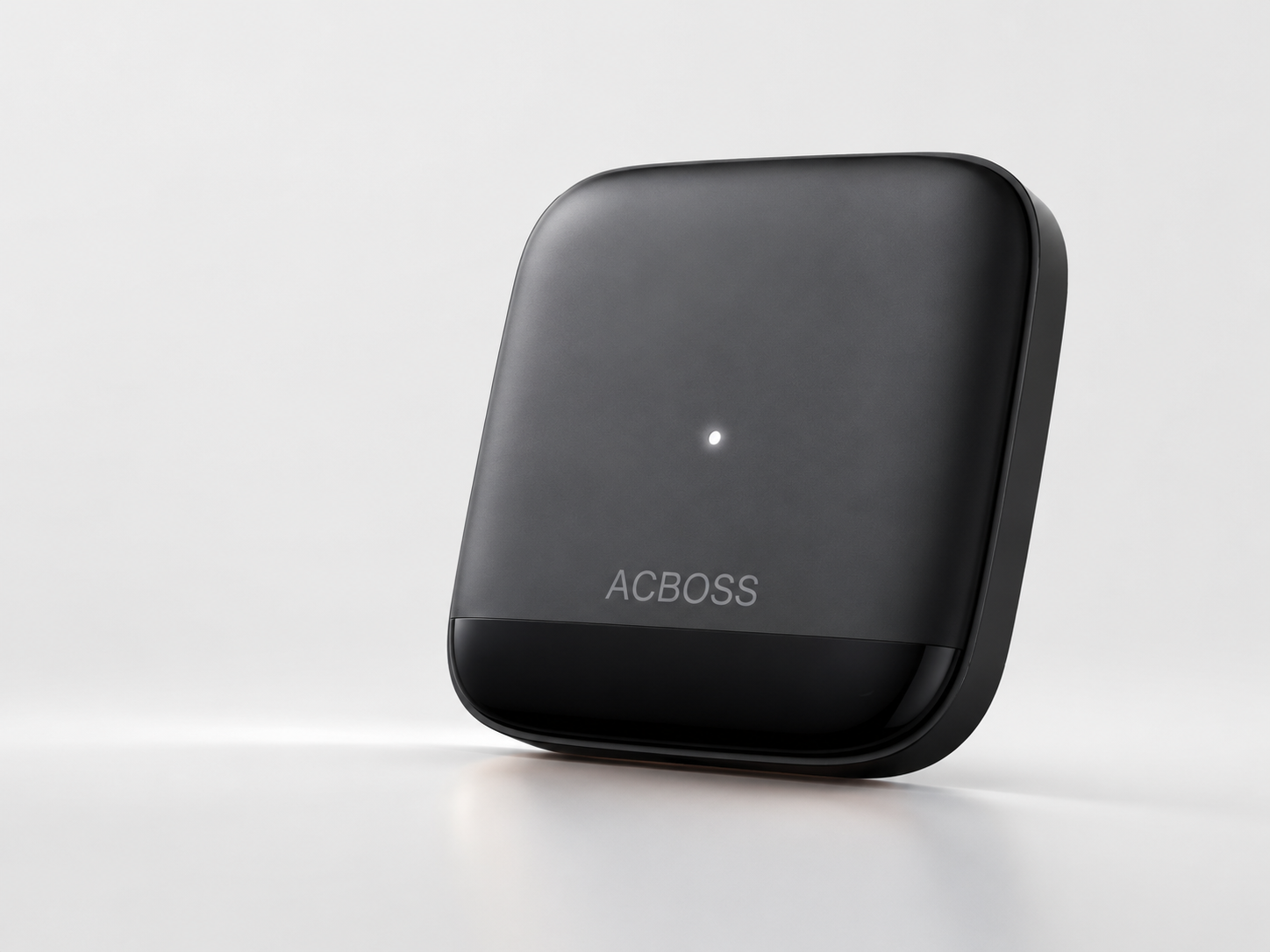

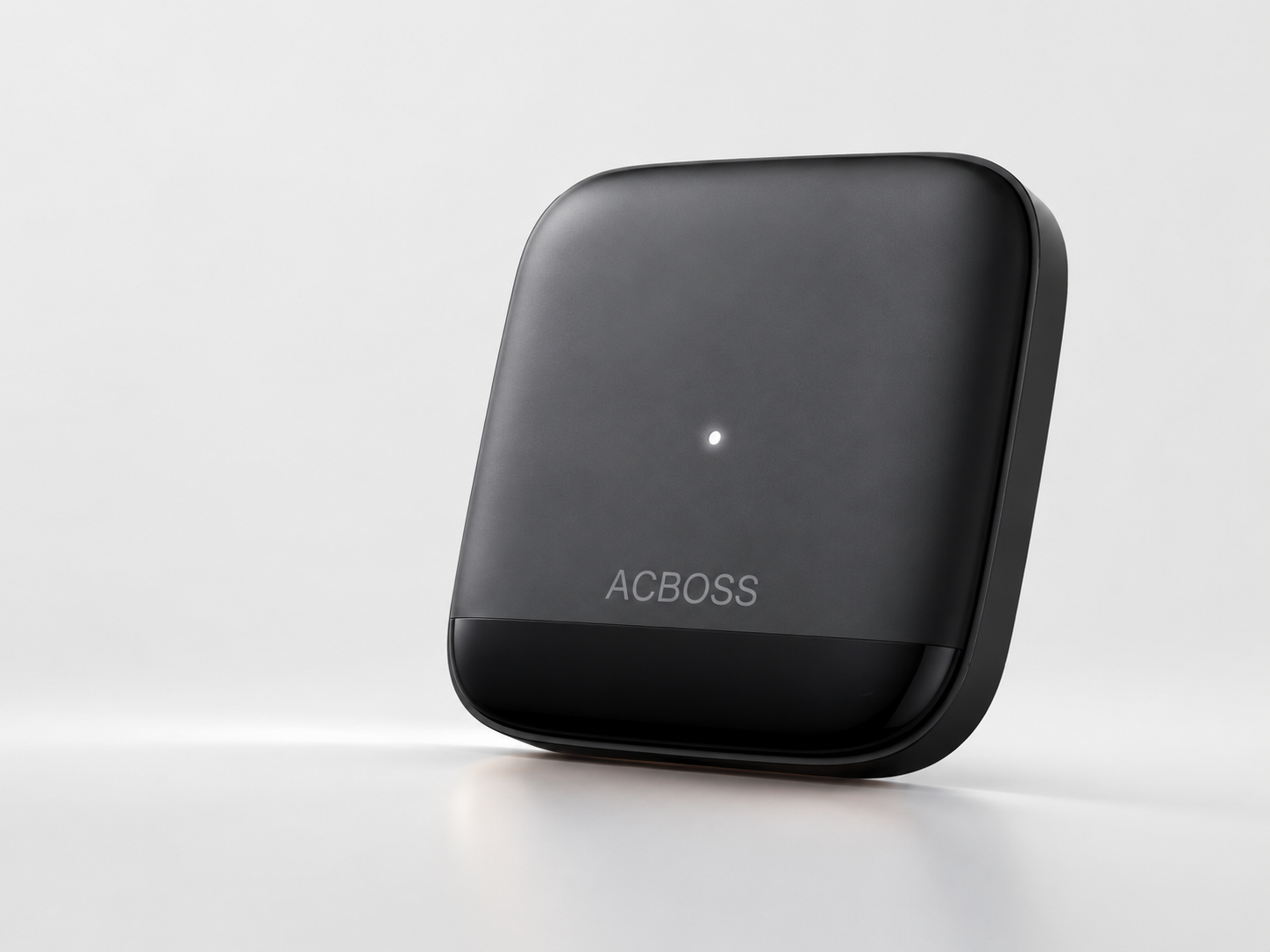

Angled close-up of the black ACBOSS controller with its status light illuminated

WHY ACBOSS

Made for a calmer night.

Comfort at bed level

ACBOSS is designed to focus on the place where you rest, not just the air high up in the room.

Place it your way

Keep it close on a bedside surface, or choose a clean wall position when you want the room to feel quieter.

Quiet local control

A considered, unobtrusive object for the room you wind down in, with a single discreet status light.

A BETTER REFERENCE POINT

Comfort follows you, not the ceiling.

Rooms are rarely experienced as averages. ACBOSS is intended to give your split AC a more personal point of reference, closer to the way a bedroom is actually used.

FLEXIBLE PLACEMENT

Mount it where it matters.

ACBOSS is designed to belong in the room rather than dominate it. Keep it within reach, or move it to a clean wall position for an intentional, low-profile setup.

Ask about mounting

ACBOSS mounted on a bedroom wall in a softly lit room

BEHIND THE SURFACE

Thoughtful technology, kept out of sight.

Its calm exterior is only the visible part of the experience. The product is designed to bring sensing and control into a single, unobtrusive room object.

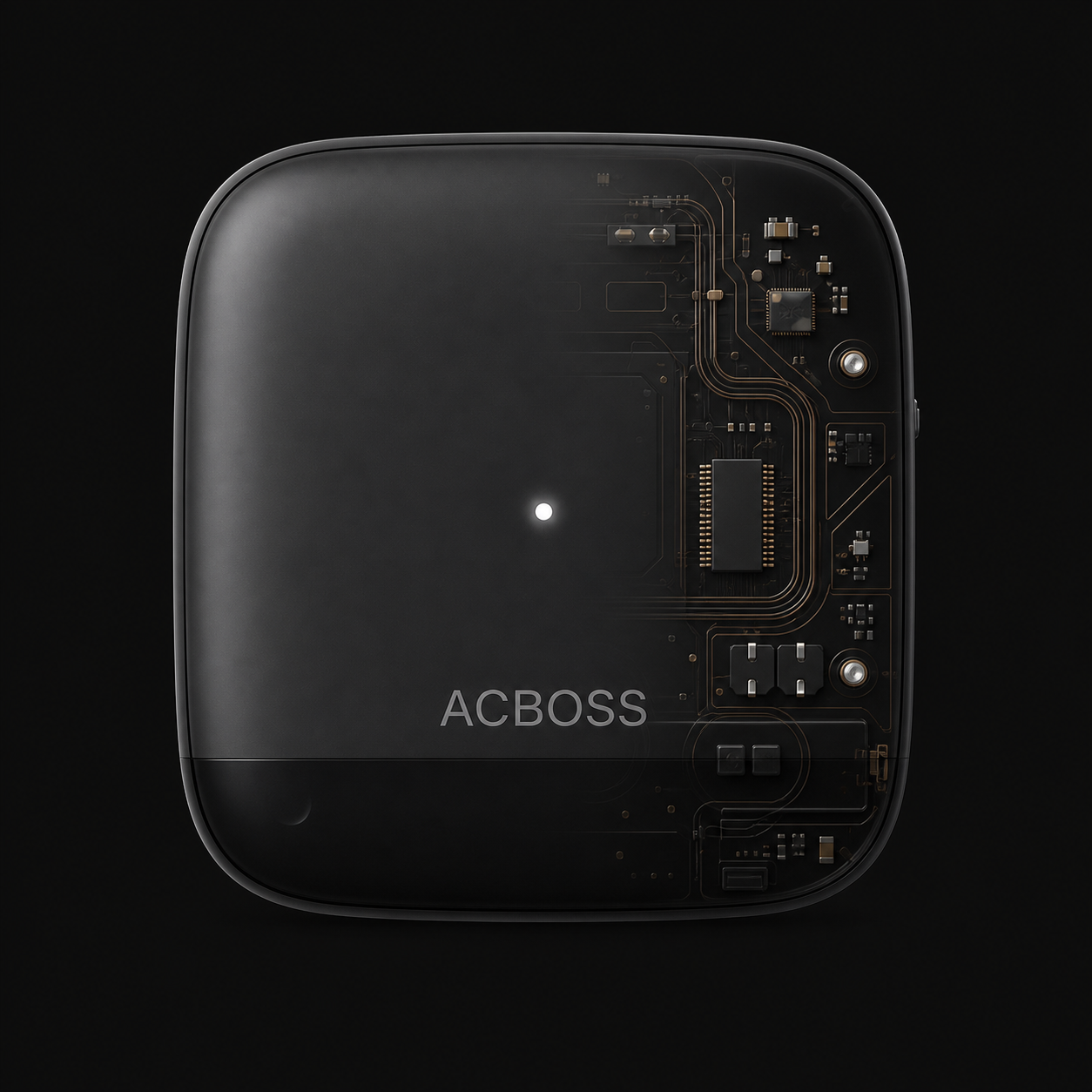

Illustrative technology view. Internal layout may change before production.

Illustrative technical cutaway of the black ACBOSS controller

FOR YOUR ROOM

Start with the setup you already have.

Every split-AC arrangement is a little different. Tell us about your room, unit, and preferred placement, and we can help you assess the right next step.

Discuss

Technical details

ACBOSS is a compact controller intended for split-AC environments. Final specifications, supported configurations, and included accessories will be shared when they are validated for production.

ENGINEERING THESIS

Why Your AC Overcools & How ACBOSS Solves It

Understand the built-in AC thermostat flaw, wired thermostat barriers, and how ACBOSS creates continuous real-world room comfort.

PROBLEM 1 // THERMAL PHYSICS FLAW

The Thermostat Built in the AC

Even a 24°C AC setting feels freezing cold after running for a while. Why? Because the thermostat built in the AC measures return air near the ceiling, not your bed.

There is a 3°C to 4°C temperature difference between your bed and ceiling return air. The AC compressor keeps running aggressively until the return air hits 24°C—leaving your sleeping area at a freezing 20°C.

BUILT-IN AC SENSOR: 24°C BED TEMP: 20°C (FREEZING)

PROBLEM 2 // HARDWARE CONTROL BARRIER

Wired Thermostats Don't Work

Traditional smart thermostats like Nest or Ecobee are built for central HVAC systems requiring 24V wired relay cables. Split ACs have zero wired thermostat ports.

To control a Split AC automatically, you need an Infrared (IR) based controller—which in reality is just a remote control. Basic IR blasters and mobile apps lack true local room sensing and occupancy radar.

NEST / ECOBEE: WIRED ONLY SPLIT AC: INFRARED ONLY

THE ACBOSS SOLUTION

Best of Both Worlds

We built ACBOSS to bridge this exact gap. It places a high-precision climate sensor right at bed/couch height—measuring true occupant thermal comfort—while using an onboard 360° IR array to send instant micro-adjustments to your Split AC. No wiring, no overcooling, no cloud latency.

Bed-Level Micro-Climate Sensing

Universal 360° Split AC IR Remote Control

Local MCU Edge AI (Zero Cloud Latency)

SIMPLIFIED DEPLOYMENT

Up & Running in Under 2 Minutes

Zero wiring, no HVAC technician required. Simply place ACBOSS on your nightstand and match your Split AC remote.

STEP 01

Place Near Bed or Couch

Set ACBOSS on your nightstand or side table. Placing it near your sleeping or sitting area ensures it senses true occupant micro-climate rather than ceiling return air.

STEP 02

2-Minute IR Remote Signal Match

Press any button on your existing Split AC remote facing ACBOSS. Onboard 38kHz IR learner automatically detects and saves your AC remote control signals.

STEP 03

Autopilot Active (100% Local)

ACBOSS begins monitoring temperature, humidity, 24GHz mmWave radar breathing, and BLE mobile app proximity—sending continuous 360° IR adjustments locally.

FLEXIBLE MOUNTING & POWER OPTIONS

Mount Anywhere. Power with Anything.

Designed for modern bedrooms: choose between tabletop placement or wall mounting, powered by standard 5V USB-C or any portable power bank.

MOUNTING 01 // DESK & NIGHTSTAND

Tabletop & Nightstand Placement

Set ACBOSS directly on your bedside table or couch stand. Its 360° omnidirectional IR lens array and weighted anti-slip base ensure perfect room coverage and bed-level sensing.

BED-LEVEL SENSING ANTI-SLIP BASE

MOUNTING 02 // WALL MOUNT

Wall Bracket & Adhesive Mount

Mount ACBOSS cleanly on any bedroom wall using the magnetic wall bracket or residue-free 3M adhesive strip. Ideal for clean wall setups with direct line-of-sight to your Split AC.

MAGNETIC BRACKET ADHESIVE MOUNT

POWER // 5V USB-C & POWER BANK

Power Bank Outage Support

Powered via standard 5V DC USB-C. Connect ACBOSS to any standard mobile power bank to keep your AC cooling autopilot active during summer power cuts and outages.

5V USB-C PORT POWER BANK READY

HARDWARE PLATFORM & FORM FACTOR

Tested Hardware Architecture & Design

Minimalist matte black squircle pebble form factor built on tested PCB component modules.

Minimalist Product Design

ACBOSS is crafted with a compact pebble footprint that sits quietly on your side table or nightstand. Discreet ambient status telemetry communicates local cooling adjustments without bright, distracting displays.

FORM FACTOR Compact & Unobtrusive

AMBIENT Status Telemetry

360° COVERAGE Omnidirectional IR Base

ACBOSS smart AC controller hardware vector graphic

MCU

Dual-band Wi-Fi (5GHz & 2.4GHz) + Thread / Zigbee (802.15.4)

The primary MCU executing local comfort algorithms. Runs deterministic real-time control loops without reliance on external cloud servers.

Bus & pinout configuration

Pin	Function	Status

REAL-TIME SIMULATION

Autopilot vs Traditional AC Curve

Adjust ambient environment parameters to see how ACBOSS prevents aggressive AC temperature swings.

Outside Heat Index: 34°C

Target Comfort Temp: 23.5°C

Traditional Split AC (Sawtooth Spikes)

ACBOSS Autopilot (Smooth Comfort Zone)

FEATURE MATRIX

ACBOSS vs Standard AC Remotes & Smart Apps

See how ACBOSS’s 100% local MCU Edge AI and 24GHz mmWave presence radar compare with traditional AC remotes, basic IR blasters, and smart apps.

Feature Dimension	Standard AC Remote	Basic IR Blaster	Smart AC App	ACBOSS Edge Autopilot
Execution Model (Cloud vs Local)	Manual Buttons	Cloud Dependent	Cloud Server API	100% Local MCU Edge AI (Zero Outages)
Human Occupancy Radar (Breathing Sense)	No	No	No Sensor	Integrated 24GHz mmWave Radar Array
App Proximity Auto-Detection	No	No	GPS Geofence Only (Location Delay)	Instant BLE 5.0 RSSI Signal Sensing
Flexible Mounting Options	Handheld	Wall / Table	Phone Only	Tabletop Base & Magnetic Wall Mount
Power Cut / Outage Backup Support	AAA Batteries	Wall Outlet Only	N/A	5V USB-C & Portable Power Bank Support
IR Emitter Base Coverage	Directional Pointing	Single Emitter LED	Single Emitter LED	360° Omnidirectional Quad IR Beam
Wireless Connectivity	None	2.4GHz Wi-Fi	2.4GHz Wi-Fi	Dual-band Wi-Fi + Thread / Zigbee 802.15.4
Bed-Height Climate Micro-Sensing	No	No	Wall Sensor / Phone Only	Precision Temp ±0.1°C + Humidity + PMV
Nighttime Bedroom Aesthetics	No Display	Status Light	Phone Screen Glow	Matte Black Squircle + Ambient Status LED

FAQ

Frequently Asked Questions

Questions about compatibility, local logic, and hardware setup.

Will ACBOSS work with my existing Split AC?

Yes. ACBOSS features a 38kHz IR receiver that learns your existing Split AC remote control signals during a 2-minute setup process.

What are the mounting options for ACBOSS?

ACBOSS offers flexible dual-mounting: place it flat on your bedside table or couch stand for bed-level sensing, or mount it cleanly on any wall using the included magnetic wall bracket or residue-free 3M adhesive strip.

Can ACBOSS run on a power bank during power outages?

Yes. ACBOSS is powered via a standard 5V DC USB-C port. You can plug it into any standard mobile power bank to maintain uninterrupted AC cooling autopilot during summer power cuts.

Does ACBOSS require active internet or Wi-Fi to run?

No. ACBOSS runs 100% of its comfort decision loops locally on the onboard MCU. Internet access is not required for continuous cooling autopilot.

What do early units look like?

Early units are custom 3D-printed hardware enclosures containing our fully-tested PCB prototype platform.

COMPATIBILITY ENQUIRY

Tell us about your room and split AC.

Share your AC model, room and city, and preferred placement. We’ll reply by email about compatibility and practical next steps.
